BAP 200R(english)

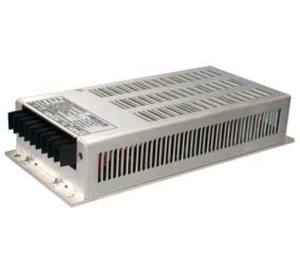

BAP 200R

200W, Rugged, Railway Quality DC/DC Converter
BAP 200R‐FT Series

  • Field‐proven rugged design
  • For train and mobile applications
  • Conduction/convection cooled
  • Full electronic protection
  • Wide selection of input/output combinations
  • N+1 redundancy available





This rugged, railway quality DC/DC converter uses field proven topology to generate the required output power. It is a mature designwith a track record in numerous applications. The unit is a simpler version of the field proven BAP 236R series with the same electrical performance but with fewer options available. Cooling is via base plate to a heat‐sinking surface and by natural convection. Ruggedizing and conformal coating provide immunity to shock, vibration and humidity. An optional redundancy diode allows parallelconnection to achieve higher output power or N+1 redundancy. Full electronic protection, low component count, large designheadroom and the use of components with established reliability result in a high MTBF. The series meets the requirements of EN50155for electronic equipment used on rolling stock. The unit is manufactured at our plant under strict quality control.

Downloads:

Opens external link in new windowDatasheet
