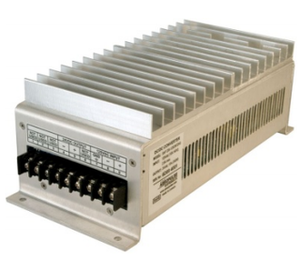

BAP 236RTH

200W, Rugged, Railway Quality, Convection Cooled DC/DC Converter
BAP 236RTH-FT Series

  • Rugged, field-proven design
  • For train and mobile applications
  • Regulated and adjustable output
  • Pure convection cooling by heat-sink fins
  • Full electronic protection
  • EN 50155 input ranges
  • N+1 redundancy available as option





This rugged, railway quality DC/DC converter uses field proven topology to generate up to 200W output power. It is a mature design with a track record in numerous applications. Cooling is via heat-sink fins on the top of the unit; installation on a heat-sinking surface is
not required. The unit can also be installed on thermally non-conductive surfaces, such as plastic, or on curved, uneven surfaces. An optional built-in redundancy diode allows for paralleling and N+1 operation or back-up battery connected. Additional ruggedizing and
conformal coating are available for applications that require higher immunity to shock, vibration and humidity. Full electronic protection, low component count, large design headroom, and the use of components with established reliability result in a high MTBF.
The unit meets the requirements of EN50155 for electronic equipment used on rolling stock. It is manufactured at our plant under strict quality control. Customized versions are available.

Downloads:

Opens external link in new windowDatasheet
