BAP 265R(english)

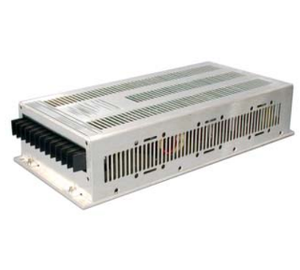

BAP 265R

250W, Rugged, Dual‐output Railway Quality DC/DC Converter
BAP 265R‐FT Series

  • Rugged, field‐proven design
  • For train and mobile applications
  • Two individually regulated outputs
  • Conduction/convection cooled
  • Full electronic protection
  • Wide selection of input/output combinations





This rugged, dual‐output railway quality DC/DC converter uses field proven topology to generate the required output power. It has  two individually regulated isolated outputs. This mature design has a track record in numerous applications. Cooling is via base plate toa heat‐sinking surface and by natural convection. Ruggedizing and conformal coating provide added immunity to shock, vibration andhumidity. Full electronic protection, low component count, large design headroom, and the use of components with establishedreliability result in a high MTBF. The unit meets the requirements of EN 50155 for electronic equipment used on railway rolling stock. Itis manufactured at our plant under strict quality control.

Downloads:

Opens external link in new windowDatasheet
