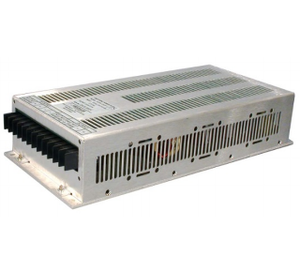

BAP 65R

300W, Rugged DC/DC Converter for Railway and other Heavy-Duty Applications
BAP 65R-FT Series

  • Field-proven rugged design
  • For train and mobile applications
  • Conduction/convection cooled
  • Full electronic protection
  • Wide selection of input/output combinations
  • N+1 redundancy available





The BAP 65R Series rugged, railway quality DC/DC converter uses field proven topology to generate 300W output power. It is a mature design with a track record in numerous applications. Cooling is by conduction via baseplate to a heat-sinking surface and by natural convection. Ruggedizing and conformal coating provide added immunity to shock, vibration and humidity. An optional redundancy diode allows parallel connection to achieve higher output power or N+1 redundancy. Other options include a Form C output fail alarm and remote shutdown. This chassis-mount design is optimized for low component count and high efficiency. The use of components with established reliability results in a demonstrated high MTBF. The unit meets the requirements of EN 50155 for electronic equipment used on railway rolling stock. It is manufactured at our plant under strict quality control. Customized versions are also available.
