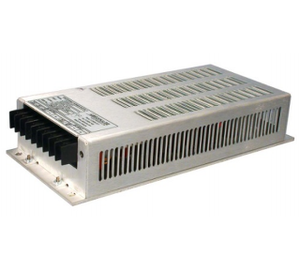

BAP 236R

200W, Rugged DC/DC Converter for Railway and other Heavy-Duty Applications
BAP 236R-FT Series

  • Rugged, field-proven design
  • For train and mobile applications
  • Conduction/convection cooled
  • Full electronic protection
  • Wide selection of input/output combinations
  • N+1 redundancy available

This rugged, railway quality DC/DC converter uses field proven topology to generate the required output power. It is a mature design with a track record in numerous applications. Cooling is via baseplate to a heat-sinking surface and by natural convection. Ruggedizing and conformal coating provide additional immunity to shock, vibration and humidity. An optional redundancy diode allows parallel connection to achieve higher output power or N+1 redundancy. Other options include a Form C output fail alarm and remote shutdown. Full electronic protection, low component count, large design headroom, and the use of components with established reliability result in a high MTBF. The unit meets the requirements of EN50155 for electronic equipment used on rolling stock. It is manufactured at our plant under strict quality control. Customized versions are also available.
